Application

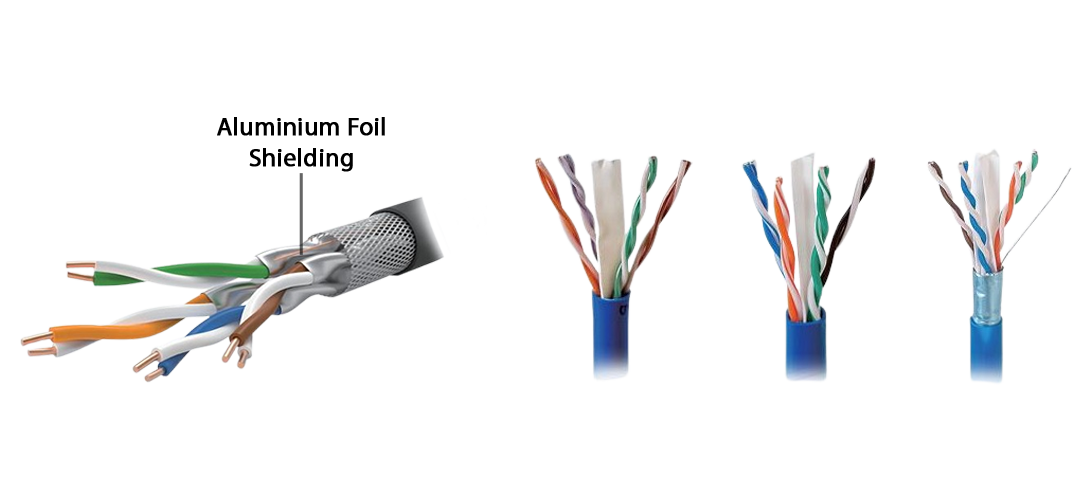

It is suitable for core wires stranding and coating aluminum foil and Myra for Electric vehicle charging cable,
Robotic flexible drag chain cable, high frequency cable, Lan cables CAT6/7/8 and control cable.
Application
It is suitable for core wires stranding and coating aluminum foil and Myra for Electric vehicle charging cable,
Robotic flexible drag chain cable, high frequency cable, Lan cables CAT6/7/8 and control cable.
Technical Parameters
| Model | CO-Φ630mm | CO-Φ800mm | CO-Φ1000mm | CO-Φ1250mm |
|---|---|---|---|---|
|
Core wire Specification(mm) |
Ф1.0-4.0 |
Ф1.5-6.0 |
Ф2.5-8.0 |
Ф3.0-10 |
|
Twisted out dia(mm) |
Ф3-10 |
Ф3-14 |
Ф3-20 |
Ф3-25 |
|
Lay length(mm) |
Touch screen setting lay length: 20-250mm, PLC control, stable acceleration and deceleration lay length |
|||
|
Maxrpm |
MAX800rpm |
MAX600rpm |
MAX500rpm |
MAX450rpm |
|
Power |
15HP |
20HP |
30HP |
40HP |
|
Taping type |
Single head horizontal type high-speed center taping machine+ Double heads side taping machine |
|||
|
Taping tension |
Constant tension electromagnetic brake wheel automatic tension tracker, the tape tension remains constant from full to empty, without manual adjustment |
|||
|
Take-up tension |
Electromagnetic tension, automatic tracking, take-up tension remains constant from full to empty, without manual adjustment |
|||
|
Traversing style |
Traversing style Traversing wire by moving shaft, it’s to avert the wire hearted in this process, the size of arrange can set by wire specification |
|||
