Application

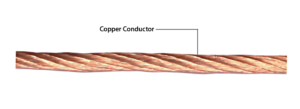

It is suitable for stranding of conductors or core wires such as silver-plated wire, tin-plated wire,
enameled wine, bare copper wire, copper-clad steel, copper-clad aluminum etc.
enameled wine, bare copper wire, copper-clad steel, copper-clad aluminum etc.
Product Introduction
- The rotation speed is high, the tension is constant from an empty disc to a full disc, the stranded wire quality is excellent, the whole machine is driven by a synchronous belt, and the twist pitch is changed by replacing the twist pitch gear, and the operation is simple.
- The main engine is lubricated by engine oil and cooled by natural circulation, which effectively extends the life of the spindle bearings.
- The bearings of the entire machine are all mode of well-known brands, and the bow straps are made of new materials with good flexibility to avoid stock jumping caused by vibration during high-speed operation The motors, frequency converters, and electromagnetic brakes are all made of well-known brands to reduce failure rates and maintenance costs.
Application
It is suitable for stranding of conductors or core wires such as silver-plated wire, tin-plated wire, enameled wine, bare copper wire, copper-clad steel, copper-clad aluminum etc.
Product Introduction
- The rotation speed is high, the tension is constant from an empty disc to a full disc, the stranded wire quality is excellent, the whole machine is driven by a synchronous belt, and the twist pitch is changed by replacing the twist pitch gear, and the operation is simple.
- The main engine is lubricated by engine oil and cooled by natural circulation, which effectively extends the life of the spindle bearings.
- The bearings of the entire machine are all mode of well-known brands, and the bow straps are made of new materials with good flexibility to avoid stock jumping caused by vibration during high-speed operation The motors, frequency converters, and electromagnetic brakes are all made of well-known brands to reduce failure rates and maintenance costs.
Technical Parameters
| Model | CO-Ф300-S | CO-Ф300-B | |
|---|---|---|---|
|
Single wire dia(mm) |
Ф0.03 mm- Ф0.10 mm |
Ф0.04 mm- Ф0.28 mm |
|
|
Cross-sectional area |
0.03-0.45mm2 |
0.035-1.0mm2 |
|
|
Lay length |
1.27mm-12.55mm |
2.95mm-58.5mm |
|
|
Operation direction |
“S” or “Z” |
“S” or “Z” |
|
|
Take up spool size |
Ф300mm |
Ф300mm |
|
|
Max.rotating speed |
Max.3000RPM/min(6000t/min) |
Max.3000RPM/min(6000t/min)
|
|
|
Motor |
3HP+3HP |
5HP+5HP |
|
|
Traverse method |
Rolling wire with ring drive units, row pitch and breadth are adjustable |
||
|
Brake |
Automatically brake/stop when wire inside and outside is broken the present length is arrived |
||
|
Bearing |
Adopt Japanese NSK |
||
