Application

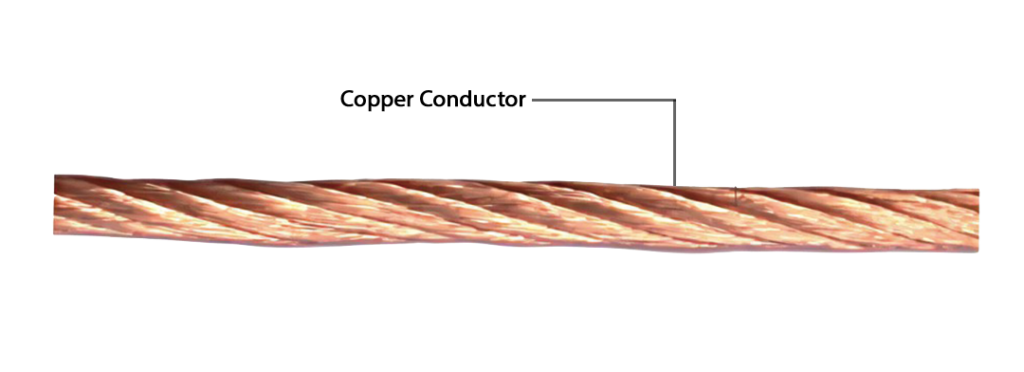

It is suitable for stranding of conductors or core wires such as silver-plated wire, tin-plated wire,
enameled wire, bare copper wire, copper-clad steel, copper-clad aluminum etc.
Product Introduction
- The rotation speed is high, the tension is constant from an empty disc to a full disc, the stranded wire quality is excellent, the whole machine is driven by a synchronous belt, and the twist pitch is changed by replacing the twist pitch gear, and the operation is simple.
- The main engine is lubricated by engine all and cooled by natural circulation, which effectively extends the life of the spindle bearings
- The bearings of the entire machine are all made of well-known brands, and the bow straps are made of new materials with good flexibility to avoid stock jumping caused by vibration during high-speed operation. The motors, frequency converters, and electromagnetic brakes are all made of well-known brands to reduce failure rates and maintenance costs.
Application
It is suitable for stranding of conductors or core wires such as silver-plated wire, tin-plated wire, enameled wire, bare copper wire, copper-clad steel, copper-clad aluminum etc.
Product Introduction
- The rotation speed is high, the tension is constant from an empty disc to a full disc, the stranded wire quality is excellent, the whole machine is driven by a synchronous belt, and the twist pitch is changed by replacing the twist pitch gear, and the operation is simple.
- The main engine is lubricated by engine all and cooled by natural circulation, which effectively extends the life of the spindle bearings
- The bearings of the entire machine are all made of well-known brands, and the bow straps are made of new materials with good flexibility to avoid stock jumping caused by vibration during high-speed operation. The motors, frequency converters, and electromagnetic brakes are all made of well-known brands to reduce failure rates and maintenance costs.
Technical Parameters
| Model | CO-Ф800mm | CO-Ф1000mm | |
|---|---|---|---|
|
Single wire dia(mm) |
Ф0.20 – 1.5 |
Ф0.30 – 3.0 |
|
|
Cross-sectional area |
Max.16mm2 |
Max.25mm2 |
|
|
Lay length |
22.51mm -152.32 |
35mm-200mm |
|
|
Operation direction |
“S” or “Z” |
“S” or “Z” |
|
|
Take up spool size |
Ф800mm |
Ф1000mm |
|
|
Max.rotating speed |
Max.1200RPM/min(2400t/min) |
Max.800RPM/min(1600t/min)
|
|
|
Motor |
15HP |
25HP |
|
|
Traverse method |
Rolling wire with ring drive units, row pitch and breadth are adjustable |
||
|
Brake |
Automatically brake/stop when wire inside and outside is broken the present length is arrived |
||
|
Bearing |
Adopt Japanese NSK |
||
Technical Parameters
| Model | CO-Ф800mm | CO- Ф1000mm | |
|---|---|---|---|
|
Single wire dia(mm) |
Ф0.20 – 1.5 |
Ф0.30 – 3.0 |
|
|
Cross-sectional area |
Max.16mm2 |
Max.25mm2 |
|
|
Lay length |
22.51mm -152.32 |
35mm-200mm |
|
|
Operation direction |
“S” or “Z” |
“S” or “Z” |
|
|
Take up spool size |
Ф800mm |
Ф1000mm |
|
|
Max.rotating speed |
Max.1200RPM/min(2400t/min) |
Max.800RPM/min(1600t/min)
|
|
|
Motor |
15HP |
25HP |
|
|
Traverse method |
Rolling wire with ring drive units, row pitch and breadth are adjustable |
||
|
Brake |
Automatically brake/stop when wire inside and outside is broken the present length is arrived |
||
|
Bearing |
Adopt Japanese NSK |
||
