Application
24DHA & 240HB fine wire drawing machine is suitable for drawing Φ 0.08-0.32 mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire)

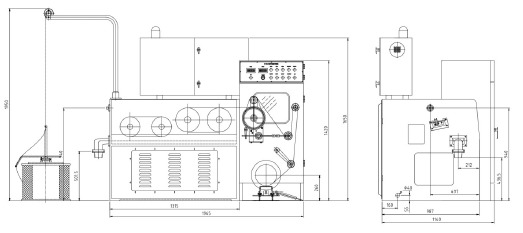

Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption, 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used with high reliability.
Application
24DHA & 240HB fine wire drawing machine is suitable for drawing Φ 0.08-0.32 mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire)
Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption, 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used with high reliability.
Technical Parameters
| Model | 24DHA | 24DHB |
|---|---|---|
|
Power control |
Dual inverter |
|
|
Inlet wire diameter |
Φ0.6 – 1.2 mm |
Φ0.6 – 1.2 mm |
|
Outlet wire diameter |
Φ0.08 – 0.32 mm |
Φ0.08 – 0.32 mm |
|
Max. line speed of drawing |
2500 m/min |
2500 m/min |
|
Number of drawing die |
24 |
24 |
|
Mechanical elongation rate |
15 % + 8.7% |
13% + 8.7% |
|
Construction of machine body |
Monoblock casting |
|
|
Capstan |
High quality imported ceramic |
|
|
Take-up spool size |
Φ206.85 mm |
|
|
Traverse method |
Flat belt |
|
|
Main motor+take-up power |
AC 11 KW + 5.5 KW |
|
|
Driving mode |
Imported advanced flat belt drive |
|
|
Control mode |
PID Dual inverter automatic control |
|
|
Max copper load |
50 kg / 80 kg |
|
|
Lubrication type |
Spray type |
|
|
Brake |
Electromagnetic brake |
|
|
Configured power |
10 KW |
|
|
Power supply |
400 V, 50/60 Hz |
|
|
Machine dimension |
L1975 X w1133 x 1725 mm |
|
|
Machine weight |
2200 kg |
|
Technical Parameters
| Model | 24DHA | 24DHB |
|---|---|---|
|
Power control |
Dual inverter |
|
|
Inlet wire diameter |
Φ0.6 – 1.2 mm |
Φ0.6 – 1.2 mm |
|
Outlet wire diameter |
Φ0.08 – 0.32 mm |
Φ0.08 – 0.32 mm |
|
Max. line speed of drawing |
2500 m/min |
2500 m/min |
|
Number of drawing die |
24 |
24 |
|
Mechanical elongation rate |
15 % + 8.7% |
13% + 8.7% |
|
Construction of machine body |
Monoblock casting |
|
|
Capstan |
High quality imported ceramic |
|
|
Take-up spool size |
Φ206.85 mm |
|
|
Traverse method |
Flat belt |
|
|
Main motor+take-up power |
AC 11 KW + 5.5 KW |
|
|
Driving mode |
Imported advanced flat belt drive |
|
|
Control mode |
PID Dual inverter automatic control |
|
|
Max copper load |
50 kg / 80 kg |
|
|
Lubrication type |
Spray type |
|
|
Brake |
Electromagnetic brake |
|
|
Configured power |
10 KW |
|
|
Power supply |
400 V, 50/60 Hz |
|
|
Machine dimension |
L1975 X w1133 x 1725 mm |
|
|
Machine weight |
2200 kg |
|
