Application
24DHAT fine wire drawing machine with continuous annealing is suitable for drawing and annealing Φ 0.08 -0.32 mm copper wire, copper alloy wire.

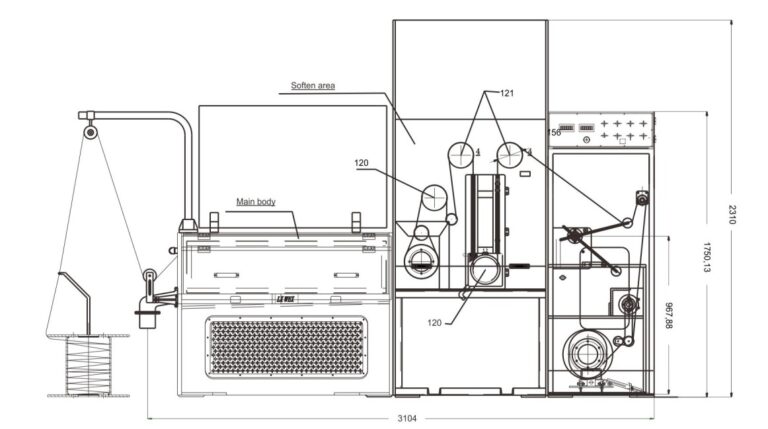

Equipment Outline Drawing
Technical Features
- Double frequency conversion, tension control.
- 590 DC speed controller/switching power supply integrated module is adopted to control annealing
- The equipment adopts 3-stage DC independent annealing.
- The control part adopts PLC and man-machine control.
- The annealing part is designed as an independent power transmission.
Application
24DHAT fine wire drawing machine with continuous annealing is suitable for drawing and annealing Φ 0.08 -0.32 mm copper wire, copper alloy wire.
Equipment Outline Drawing
Technical Features
- Double frequency conversion, tension control.
- 590 DC speed controller/switching power supply integrated module is adopted to control annealing
- The equipment adopts 3-stage DC independent annealing.
- The control part adopts PLC and man-machine control.
- The annealing part is designed as an independent power transmission.
Technical Parameters
| Model | 24DHAT |
|---|---|
|
Inlet wire diameter |
Φ 0.6 -1.2 mm |
|
Outlet wire diameter |
Φ 0.08 – 0.32 mm |
|
Max. line speed of drawing |
2000 m/min |
|
Mechanical elongation rate |
15% + 8.7% |
|
Annealing power |
15 KVA |
|
Annealing current |
200 A |
|
Take-up motor power |
5.5 KW /3.7 KW |
|
Main power |
15 KW |
|
Applicable spool size |
300 mm |
|
Electric control mode |
PID Dual inverter automatic control |
|
Take-up capacity |
50 kg |
|
Brake |
Electromagnetic brake |
|
Configured power |
25 KW |
|
Power supply |
400V, 50/60 Hz |
|
Machine dimension |
L3104 x W1538 X H2310 mm |
|
Machine weight |
3000 kg |
Technical Parameters
| Model | 24DHAT |
|---|---|
|
Inlet wire diameter |
Φ 0.6 -1.2 mm |
|
Outlet wire diameter |
Φ 0.08 – 0.32 mm |
|
Max. line speed of drawing |
2000 m/min |
|
Mechanical elongation rate |
15% + 8.7% |
|
Annealing power |
15 KVA |
|
Annealing current |
200 A |
|
Take-up motor power |
5.5 KW /3.7 KW |
|
Main power |
15 KW |
|
Applicable spool size |
300 mm |
|
Electric control mode |
PID Dual inverter automatic control |
|
Take-up capacity |
50 kg |
|
Brake |
Electromagnetic brake |
|
Configured power |
25 KW |
|
Power supply |
400V, 50/60 Hz |
|
Machine dimension |
L3104 x W1538 X H2310 mm |
|
Machine weight |
3000 kg |
