Application
ZL250/21 Intermediate wire drawing machine is suitable for drawing Φ 0.4-1.2 mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steal wire (CCS wire).

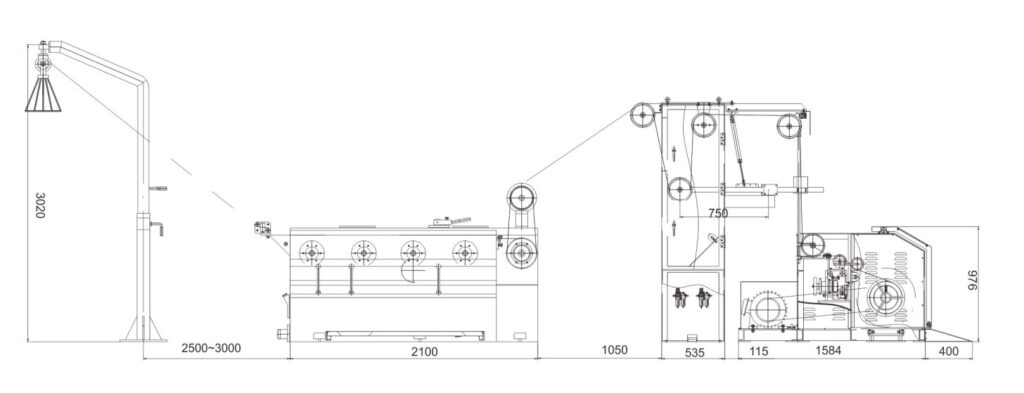

Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control.
- High production efficiency and low energy consumption.
- High precision gear transmission, low noise.
- Imported components are widely used, with high reliability.
- Cable arrangement mode is servo cable arrangement.
Application
ZL250/21 Intermediate wire drawing machine is suitable for drawing Φ 0.4-1.2 mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steal wire (CCS wire).
Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control.
- High production efficiency and low energy consumption.
- High precision gear transmission, low noise.
- Imported components are widely used, with high reliability.
- Cable arrangement mode is servo cable arrangement.
Technical Parameters
| Model | 24DHAT |
|---|---|
|
Power control |
Dual inverter |
|
Inlet wire diameter |
Φ 2.6 -3.0 mm |
|
Outlet wire diameter |
Φ 0.4- 1.2 mm |
|
Max. line speed of drawing |
1800 m/min |
|
Number of drawing die |
21 |
|
Mechanical elongation rate |
18.4% + 15% |
|
Construction of machine body |
Casting + steel plate welding and annealing |
|
Capstan |
Ceramic cone pulley |
|
Capstan diameter (max) |
Φ250 mm |
|
Take-up spool size |
Φ 400 / 500 /630 mm |
|
Compressed air consumption |
20- 30 m3/h, 0.4 – 0.6 MPa |
|
Main motor+ take-up power |
AC55+ 11 KW |
|
Electric control mode |
Double frequency conversion tension automatic control |
|
Tension control |
Pneumatic tension |
|
Take-up mode |
Single/double spool take up |
|
Max. copper load |
500 kg |
|
Volume of oil |
40 L/min |
|
Lubrication mode |
Lubrication by full immersion |
|
Brake |
Disc type brake |
|
Configured power |
60 KW |
|
Power supply |
400V, 50/60 Hz |
Technical Parameters
| Model | 24DHAT |
|---|---|
|
Power control |
Dual inverter |
|
Inlet wire diameter |
Φ 2.6 -3.0 mm |
|
Outlet wire diameter |
Φ 0.4- 1.2 mm |
|
Max. line speed of drawing |
1800 m/min |
|
Number of drawing die |
21 |
|
Mechanical elongation rate |
18.4% + 15% |
|
Construction of machine body |
Casting + steel plate welding and annealing |
|
Capstan |
Ceramic cone pulley |
|
Capstan diameter (max) |
Φ250 mm |
|
Take-up spool size |
Φ 400 / 500 /630 mm |
|
Compressed air consumption |
20- 30 m3/h, 0.4 – 0.6 MPa |
|
Main motor+ take-up power |
AC55+ 11 KW |
|
Electric control mode |
Double frequency conversion tension automatic control |
|
Tension control |
Pneumatic tension |
|
Take-up mode |
Single/double spool take up |
|
Max. copper load |
500 kg |
|
Volume of oil |
40 L/min |
|
Lubrication mode |
Lubrication by full immersion |
|
Brake |
Disc type brake |
|
Configured power |
60 KW |
|
Power supply |
400V, 50/60 Hz |
