Application
16DH, 20DH and 220H medium line wire drawing machines are suitable for drawing respectively Φ 0.2-0.6 mm, Φ 0.17 -0.6 mm and Φ 0.15-0.6 mm copper wire aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire).

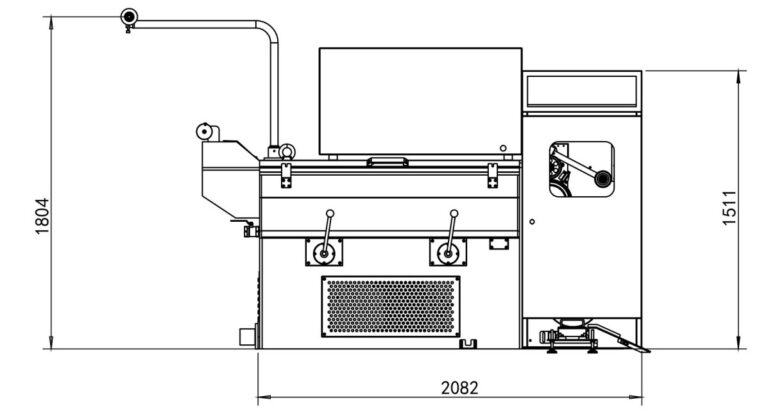

Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control.
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption, 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used, with high reliability.
Application
16DH, 20DH and 220H medium line wire drawing machines are suitable for drawing respectively Φ 0.2-0.6 mm, Φ 0.17 -0.6 mm and Φ 0.15-0.6 mm copper wire aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire).
Equipment Outline Drawing
Technical Features
- Integrated control system, double frequency conversion tension automatic control.
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption, 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used, with high reliability.
Technical Parameters
| Model | 16DH | 20DH | 22DH |
|---|---|---|---|
|
Power control |
Dual inverter |
||
|
Inlet wire diameter |
Φ 1.0 -1.6 mm |
Φ 1.0 -1.6 mm |
Φ 0.8 -1.6 mm |
|
Outlet wire diameter |
Φ 0.2 -0.6 mm |
Φ 0.17 -0.6 mm |
Φ 0.15 -0.6 mm |
|
Max. line speed of drawing |
1600 m/min |
1600 m/min |
1800 m/min |
|
Number of drawing die |
16 |
20 |
20 |
|
Mechanical elongation rate |
17.5% + 10% |
17.5% + 10% |
17.5% + 10% |
|
Construction of machine body |
A3 steel plate welding |
Monoblock casting |
|
|
Capstan |
Imported ceramic capstan |
||
|
Capstan diameter (Max) |
Φ220 mm |
Φ 200 mm |
Φ 200 mm |
|
Take-up spool size |
Φ300 / 400 mm |
Φ300 / 400 mm |
Φ300 / 400 mm |
|
Main Motor + take-up power |
AC18.5+ 5.5 KW |
AC18.5+ 5.5 KW |
AC18.5+ 5.5 KW |
|
Driving mode |
Imported advanced flat belt drive |
||
|
Control mode |
PID Dual inverter automatic control |
||
|
Tension control |
Counterweight tension pulley |
||
|
Max. copper load |
50 / 80 kg |
50 / 80 kg |
50 / 80 kg |
|
Volume of oil |
40 L/min |
40 L/min |
40 L/min |
|
Lubrication type |
Lubrication by full immersion |
Spray type |
|
|
Brake |
Electromagnetic brake |
||
|
Configured power |
22 KW |
||
|
Power supply |
400V, 50/60 Hz |
||
|
Machine dimension |
L2384 x W1188 x H1804 mm |
||
|
Machine weight |
2250 kg |
2400 kg |
2250 |
Technical Parameters
| Model | 16DH | 20DH | 22DH |
|---|---|---|---|
|
Power control |
Dual inverter |
||
|
Inlet wire diameter |
Φ 1.0 -1.6 mm |
Φ 1.0 -1.6 mm |
Φ 0.8 -1.6 mm |
|
Outlet wire diameter |
Φ 0.2 -0.6 mm |
Φ 0.17 -0.6 mm |
Φ 0.15 -0.6 mm |
|
Max. line speed of drawing |
1600 m/min |
1600 m/min |
1800 m/min |
|
Number of drawing die |
16 |
20 |
20 |
|
Mechanical elongation rate |
17.5% + 10% |
17.5% + 10% |
17.5% + 10% |
|
Construction of machine body |
A3 steel plate welding |
Monoblock casting |
|
|
Capstan |
Imported ceramic capstan |
||
|
Capstan diameter (Max) |
Φ220 mm |
Φ 200 mm |
Φ 200 mm |
|
Take-up spool size |
Φ300 / 400 mm |
Φ300 / 400 mm |
Φ300 / 400 mm |
|
Main Motor + take-up power |
AC18.5+ 5.5 KW |
AC18.5+ 5.5 KW |
AC18.5+ 5.5 KW |
|
Driving mode |
Imported advanced flat belt drive |
||
|
Control mode |
PID Dual inverter automatic control |
||
|
Tension control |
Counterweight tension pulley |
||
|
Max. copper load |
50 / 80 kg |
50 / 80 kg |
50 / 80 kg |
|
Volume of oil |
40 L/min |
40 L/min |
40 L/min |
|
Lubrication type |
Lubrication by full immersion |
Spray type |
|
|
Brake |
Electromagnetic brake |
||
|
Configured power |
22 KW |
||
|
Power supply |
400V, 50/60 Hz |
||
|
Machine dimension |
L2384 x W1188 x H1804 mm |
||
|
Machine weight |
2250 kg |
2400 kg |
2250 |
