Application
20DHA micro wire drawing machine is suitable for drawing Φ 0.05- 0.12 mm copper wire, aluminum wire, copper clad aluminum wire (CCA) and copper clad steel wire (CCS wire). 24DHW micro wire drawing machine is suitable for drawing Φ 0.025-0.05 mm copper wire, copper alloy wire.

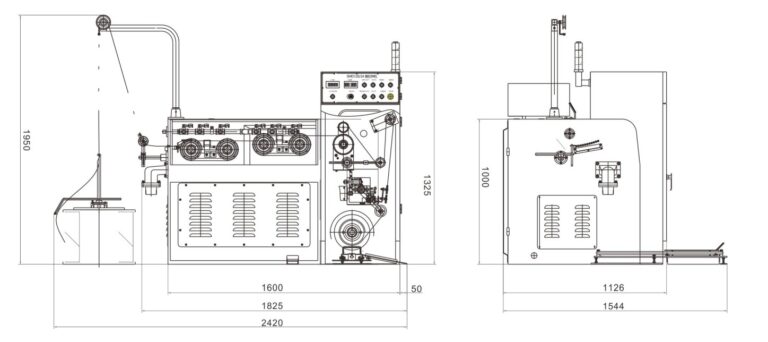

Equipment Outline Drawing
Technical Features
- Dual frequency converter, automatic tension control.
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used with high reliability.
Application
20DHA micro wire drawing machine is suitable for drawing Φ 0.05- 0.12 mm copper wire, aluminum wire, copper clad aluminum wire (CCA) and copper clad steel wire (CCS wire). 24DHW micro wire drawing machine is suitable for drawing Φ 0.025-0.05 mm copper wire, copper alloy wire.
Equipment Outline Drawing
Technical Features
- Dual frequency converter, automatic tension control.
- Zero sliding pulley design, high production efficiency and excellent surface quality of finished wire.
- Low energy consumption 20%-25% less power than the traditional model, which can reduce the production cost.
- Imported components are widely used with high reliability.
Technical Parameters
| Model | 20DHA | 24DHW |
|---|---|---|
|
Max. inlet diameter |
Φ 0.15 ~ 0.40 mm |
Φ 0.06 ~ 0.15 mm |
|
Outlet diameter range |
Φ 0.05 ~ 0.12 mm |
Φ 0.025 ~ 0.05 mm |
|
Max. line speed of drawing |
2000 m/min |
1800 m/min |
|
Capstan diameter |
Φ 120 mm |
Φ 100 mm |
|
Number of dies |
20 |
24 |
|
Mechanical elongation rate |
12% +6.5 % |
8% + 7% |
|
Main motor + take- up power |
5.5 kw +4 kw |
4 kw +2.2 kw |
|
Configured power |
6 kw |
6 kw |
|
Take-up spool size |
Φ 230 x 160 x 125 x 250 mm |
Φ 230 x 160 x 125 x 250 mm |
|
Voltage |
400 V |
400 V |
|
Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
|
Traverse method |
Synchronous motor |
Spool traverse |
|
Lubrication type |
Spray type |
Spray type |
|
Braking type |
Electromagnetic brake |
Electromagnetic brake |
|
Machine dimension |
L1825 x W1126 x H1950 mm |
L1600 x W1350 x H1700 mm |
|
Net weight |
1600 kg |
1500 kg |
Technical Parameters
| Model | 20DHA | 24DHW |
|---|---|---|
|
Max. inlet diameter |
Φ 0.15 ~ 0.40 mm |
Φ 0.06 ~ 0.15 mm |
|
Outlet diameter range |
Φ 0.05 ~ 0.12 mm |
Φ 0.025 ~ 0.05 mm |
|
Max. line speed of drawing |
2000 m/min |
1800 m/min |
|
Capstan diameter |
Φ 120 mm |
Φ 100 mm |
|
Number of dies |
20 |
24 |
|
Mechanical elongation rate |
12% +6.5 % |
8% + 7% |
|
Main motor + take- up power |
5.5 kw +4 kw |
4 kw +2.2 kw |
|
Configured power |
6 kw |
6 kw |
|
Take-up spool size |
Φ 230 x 160 x 125 x 250 mm |
Φ 230 x 160 x 125 x 250 mm |
|
Voltage |
400 V |
400 V |
|
Frequency |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
|
Traverse method |
Synchronous motor |
Spool traverse |
|
Lubrication type |
Spray type |
Spray type |
|
Braking type |
Electromagnetic brake |
Electromagnetic brake |
|
Machine dimension |
L1825 x W1126 x H1950 mm |
L1600 x W1350 x H1700 mm |
|
Net weight |
1600 kg |
1500 kg |
