Application
Apply to produce low consumption, long life-span physical foam PE insulation application fine coaxial cable, special wire cable,
communication cable and data cable etc. Especially suitable for small coaxial cable production.
communication cable and data cable etc. Especially suitable for small coaxial cable production.

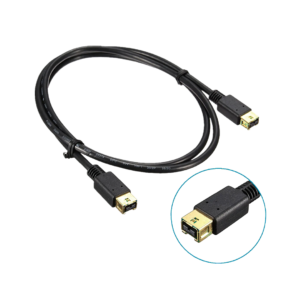

IEEE1394

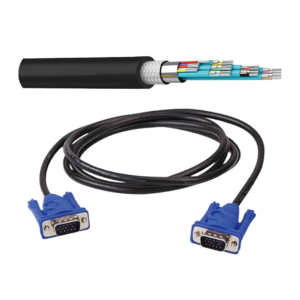

DVI

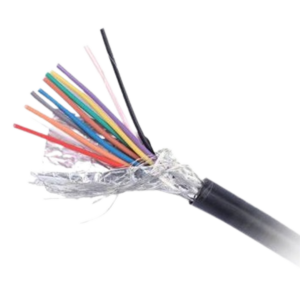

UL2929

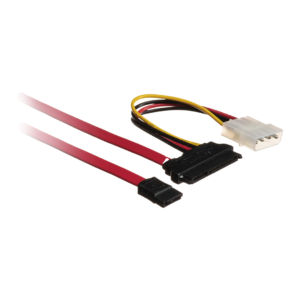

ATA
Application
Apply to produce low consumption, long life-span physical foam PE insulation application fine coaxial cable, special wire cable, communication cable and data cable etc. Especially suitable for small coaxial cable production.
IEEE1394
DVI
UL2929
ATA
Technical Parameters
| Model | PY-Φ45+30mm | PY-Φ65+35mm | PY-Φ90+35mm |
|---|---|---|---|
|
Conductor dia.(mm) |
0.4-1.0 |
0.8-2.0 |
1.0-5.0 |
|
Extruded dia.(mm) |
1.5-5.0 |
3.5-9.0 |
4.8-16.0 |
|
Screw length/diameter(mm) |
Ф45 |
Ф65 |
Ф90 |
|
Extrusions capacity(kg/hr) |
30 |
50 |
80 |
|
L/D |
34: 1 tailored screw |
||
|
Extrusion capacity(kg/hr) |
30 |
60 |
100 |
|
Main power |
10HP |
30HP |
60HP |
|
Cooling length(m) |
25 |
25 |
25 |
|
Capstan power |
3HP |
5HP |
7.5HP |
|
Foaming |
N2 nitrogen fluorine |
||
|
Line speed |
Max180m/min |
Max150m/min |
Max100m/min |
|
Electrical control |
Inverter + PLC entire control |
||
