Application
Used in production of power cables.

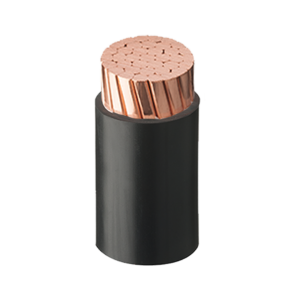

PVC Insulated Wire
PVC insulated

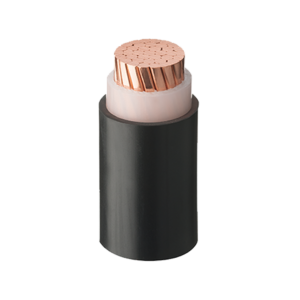

PVC covered power cable

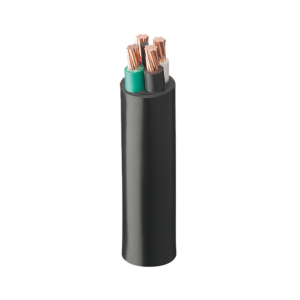

Insulated PVC covered power cable
Application
Used in production of power cables.
PVC Insulated Wire
PVC Insulated
PVC Covered Power Cable
Insulated PVC
Covered Power Cable
Technical Parameters
| Model | PY-Φ90mm | PY-Φ100mm | PY-Φ120mm | PY-Φ150mm |
|---|---|---|---|---|
|
Pay-off bobbin size(mm) |
PN630-800/1250 |
PN630-800/1600 |
PN1600-2000 |
PN2500-3150 |
|
Screw diameter (mm) |
Ф90 |
Ф100 |
Ф120 |
Ф150 |
|
L/D of screw |
25:1 |
25:1 |
25:1 |
25:1 |
|
Extrusion capacity(kg/hr) |
300 |
350 |
400 |
600 |
|
Extruder power |
50HP |
70HP |
120HP |
40HP |
|
Range of wire size(mm) |
Ф5-35 |
Ф5-50 |
Ф10-80 |
Ф20-200 |
|
Capstan power |
7.5HP |
10HP |
15HP |
20HP |
|
Speed(m/min) |
0-200 |
0-180 |
0-100 |
0-60 |
