Application

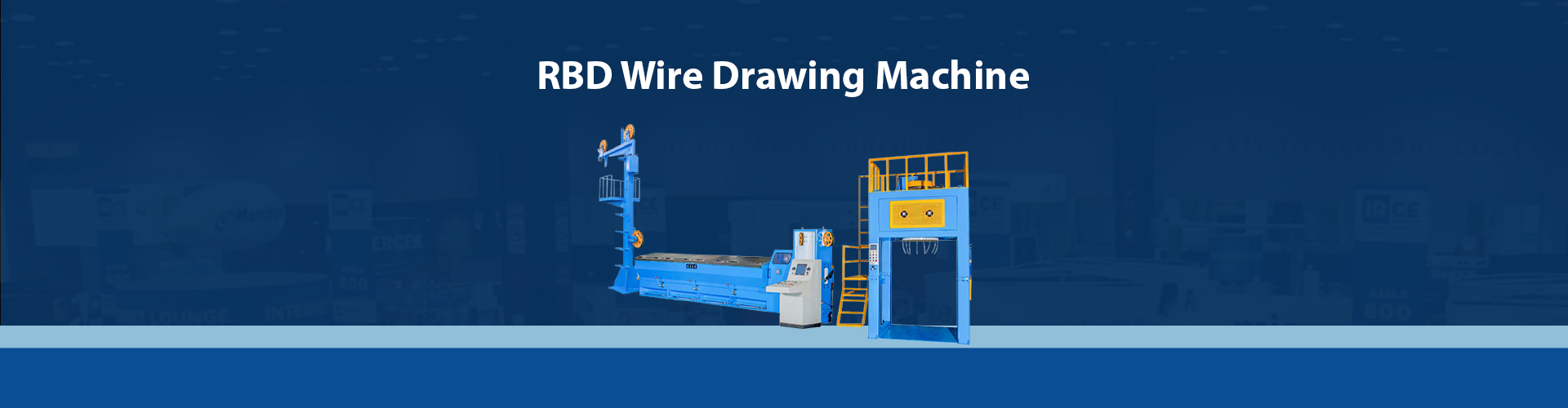

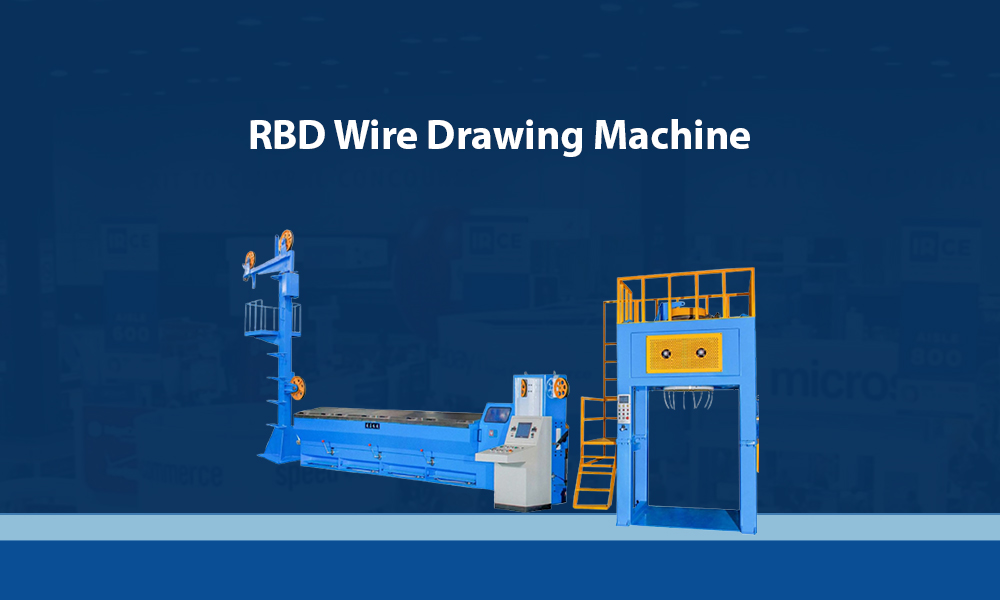

8D, 9D, 11D, 13D Rod breakdown machines are applicable to drawing respectively Φ 2.6-3.0mm, Φ2.52-3.0mm, Φ1.6- 3.5mm, Φ 1.3-3.5mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire).Copper wire can be annealed online.
Technical Features
- The wire drawing pulleys are arranged horizontally, and immersed in wire drawing oil—–easy to operate.
- Tungsten carbide welded on the surface of steel ring———- durable.
- Advanced CNC system —-high efficiency.
- Gear transmission———– low noise and good stability.
- The equipment adopts modular design and remote I/O communication connection.
Equipment Outline Drawing
Application
8D, 9D, 11D, 13D Rod breakdown machines are applicable to drawing respectively Φ 2.6-3.0mm, Φ2.52-3.0mm, Φ1.6- 3.5mm, Φ 1.3-3.5mm copper wire, aluminum wire, copper clad aluminum wire (CCA wire), and copper clad steel wire (CCS wire).Copper wire can be annealed online.
Technical Features
- The wire drawing pulleys are arranged horizontally, and immersed in wire drawing oil—–easy to operate.
- Tungsten carbide welded on the surface of steel ring———- durable.
- Advanced CNC system —-high efficiency.
- Gear transmission———– low noise and good stability.
- The equipment adopts modular design and remote I/O communication connection.
Equipment Outline Drawing
Technical Parameters
| Model | DL400/8 | DL400/9 | DL400/11 | DL400/13 |
|---|---|---|---|---|
|
Inlet wire diameter |
Ф8.0 mm |
Ф8.0 mm |
Ф8.0 mm |
Ф8.0 mm |
|
Outlet wire diameter |
Ф2.6 – 3.0 mm |
Ф2.25 – 3.0 mm |
Ф1.6 – 3.5 mm |
Ф1.3 – 3.5 mm |
|
Number of drawing die |
8 |
9 |
11 |
13 |
|
Line speed |
600 m/min |
600 m/min |
1200 m/min |
1200 m/min |
|
Drawing block size |
Ф400 mm |
Ф400 mm |
Ф400 mm |
Ф450 mm |
|
Main motor power |
132 Kw(AC) |
132 Kw(AC) |
132 Kw(AC) + 45 Kw |
160 Kw + 45 Kw |
|
Elongation rate |
32% + 13%
|
30% 1st-8th dies, 31.7%;9th die, 13-30% |
10-30% 1st-10th dies, 31.7%;11th die, 13-30% |
30% 1st-12th dies, 20%-40%;13th die, 13-30% |
|
Drawing die dimension |
Ф55 x 35 |
Ф55 x 35 |
Ф55 x 35 |
Ф55 x 35 |
|
Take-up spool size |
Ф680/800mm |
Ф680/800mm |
Ф680/800mm |
Ф680/800mm |
|
Take-up mode |
Single/double spool take up/drop coiler
|
|||
|
Total equipment power |
145 KW |
145 KW |
180 KW |
220 KW |
|
Die change mode |
Quick die change |
Quick die change |
||
|
Brake |
PID automatic control |
|||
|
Configured power |
130 KW |
160 KW |
200KW |
|
|
Machine dimension |
L13690xW4386XH3680mm |
L12000xW4500xH4000mm |
L16000xW5000xH4000mm |
L27000xW7000xH4500mm |
|
Machine weight |
10000 kg |
10000 kg |
11000 kg |
12000 kg |
