Application
Apply to all categories high frequency cable, Communication cable, Data cable, Coaxial cable, Lan cable, Rf cable, RG, JIS etc
core wire double layers chemical foam or solid wire extrusion.
core wire double layers chemical foam or solid wire extrusion.
IEEE1394

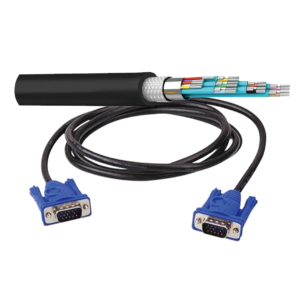

DVI

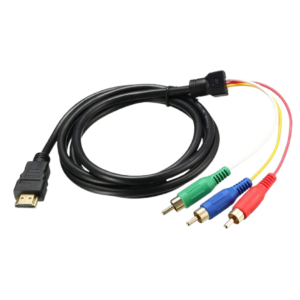

HDMI
Application
Apply to all categories high frequency cable, Communication cable, Data cable, Coaxial cable, Lan cable, Rf cable, RG, JIS etc
core wire double layers chemical foam or solid wire extrusion.
IEEE1394
DVI
HDMI
Technical Parameters
| Model | PY-Φ30+20mm | PY-Φ40+30mm | PY-Φ50+35mm |
|---|---|---|---|
|
Pay-off type |
Active |
Active |
Active |
|
Pay-off bobbin size(mm) |
Ф200-300 |
Ф300-400 |
Ф300-500 |
|
Insulation diameter(mm) |
Ф0.2-2.5 |
Ф0.6-3.0 |
Ф0.6-5.0 |
|
Extrusions capacity(kg/hr) |
30 |
50 |
80 |
|
Main machine power |
7.5HP |
10HP |
15HP |
|
Sub-motor power |
2HP |
2HP |
3HP |
|
Wire accumulating length(mm) |
200 |
200 |
200 |
|
Take-up bobbin(mm) |
300-400 |
400-500 |
400-500 |
Technical Parameters
| Model | PY-Φ30+20mm | PY-Φ40+30mm | PY-Φ50+35mm |
|---|---|---|---|
|
Pay-off type |
Active |
Active |
Active |
|
Pay-off bobbin size(mm) |
Ф200-300 |
Ф300-400 |
Ф300-500 |
|
Insulation diameter(mm) |
Ф0.2-2.5 |
Ф0.6-3.0 |
Ф0.6-5.0 |
|
Extrusions capacity(kg/hr) |
30 |
50 |
80 |
|
Main machine power |
7.5HP |
10HP |
15HP |
|
Sub-motor power |
2HP |
2HP |
3HP |
|
Wire accumulating length(mm) |
200 |
200 |
200 |
|
Take-up bobbin(mm) |
300-400 |
400-500 |
400-500 |
